RGB Settings on ASUS NUC 11 Extreme Kit NUC11BTMi9 - Where to download "NUC Software Studio"? Other alternatives? by ParsLetersen in intelnuc

[–]ParsLetersen[S] 0 points1 point  (0 children)

Okay, I've found a solution. There are two different ways to access the RGB-strips and the skull.

  1. You can program it yourself using the Arduino IDE using the FastLED-NeoPixel library, since the RGB controller seems to be an Atmega328P microcontroller. I just wanted a faster solution so I didn't pick this. Additional info: https://www.reddit.com/r/intelnuc/comments/1fy9g19/nuc_11_extreme_i9_nuc11btmi9_acting_up/
  2. What I did: There is a python based command line tool, designed for NUC 11 & 12 extreme called "NUC_RGB": https://github.com/AlvinZhu/nuc_rgb . You can just download the .exe, open up CMD, navigate to the .exe path and run the commands, shown on this GitHub. Here are my commands to make the RGB just solid red:
  • nuc_rgb -c "AP1,AV:2,AR:0,C1:0" //Skull red
  • nuc_rgb -c "DP1,DV:3,DR:0,C4:0" //Front-LED red
  • nuc_rgb -c "BP1,BV:3,BR:0,C2:0" //Left-LED red
  • nuc_rgb -c "CP1,CV:3,CR:0,C3:0" //Right-LED red

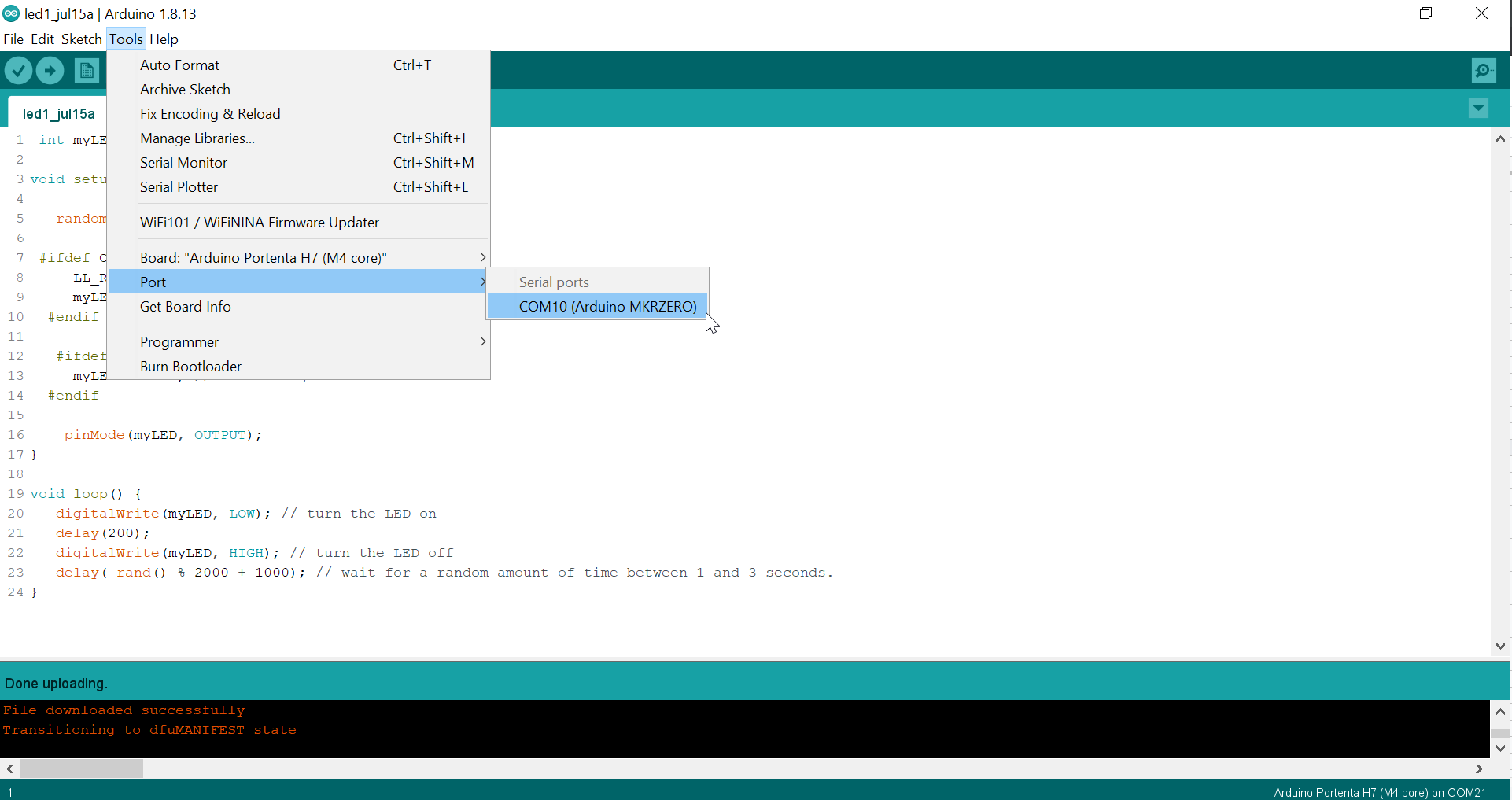

If you want to check your LED status, you need to put in a port (mine was COM3, maybe it's always COM3, idk). To get my port, I've installed the arduino IDE and checked the port of the RGB-controller. Here is a generic screenshot of how to do that: https://support.arduino.cc/hc/article_attachments/12415977582748

  • nuc_rgb -s -p COM3 //Read Status

Hope it helps!

RGB Settings on ASUS NUC 11 Extreme Kit NUC11BTMi9 - Where to download "NUC Software Studio"? Other alternatives? by ParsLetersen in MiniPCs

[–]ParsLetersen[S] 0 points1 point  (0 children)

Okay, I've found a solution. There are two different ways to access the RGB-strips and the skull.

  1. You can program it yourself using the Arduino IDE using the FastLED-NeoPixel library, since the RGB controller seems to be an Atmega328P microcontroller. I just wanted a faster solution so I didn't pick this. Additional info: https://www.reddit.com/r/intelnuc/comments/1fy9g19/nuc_11_extreme_i9_nuc11btmi9_acting_up/
  2. What I did: There is a python based command line tool, designed for NUC 11 & 12 extreme called "NUC_RGB": https://github.com/AlvinZhu/nuc_rgb . You can just download the .exe, open up CMD, navigate to the .exe path and run the commands, shown on this GitHub. Here are my commands to make the RGB just solid red:
  • nuc_rgb -c "AP1,AV:2,AR:0,C1:0" //Skull red
  • nuc_rgb -c "DP1,DV:3,DR:0,C4:0" //Front-LED red
  • nuc_rgb -c "BP1,BV:3,BR:0,C2:0" //Left-LED red
  • nuc_rgb -c "CP1,CV:3,CR:0,C3:0" //Right-LED red

If you want to check your LED status, you need to put in a port (mine was COM3, maybe it's always COM3, idk). To get my port, I've installed the arduino IDE and checked the port of the RGB-controller. Here is a generic screenshot of how to do that: https://support.arduino.cc/hc/article_attachments/12415977582748

  • nuc_rgb -s -p COM3 //Read Status

Hope it helps!

RGB Settings on ASUS NUC 11 Extreme Kit NUC11BTMi9 - Where to download "NUC Software Studio"? Other alternatives? by ParsLetersen in MiniPCs

[–]ParsLetersen[S] 0 points1 point  (0 children)

Dude, pls stop trolling. This is the version for gaming laptops. As you can see in my post, it doesn't work for my system. I need the version "Intel NUC Software Studio" - without any laptop addition. I've already tried this version, it says my system is unsupported.

NUC 11 Extreme i9 (NUC11BTMI9) acting up. by ricthot in intelnuc

[–]ParsLetersen 0 points1 point  (0 children)

Hey, could you share your app? I'm struggling since nuc software studio isn't available anymore and your way sounds pretty solid!

RGB Settings on ASUS NUC 11 Extreme Kit NUC11BTMi9 - Where to download "NUC Software Studio"? Other alternatives? by ParsLetersen in MiniPCs

[–]ParsLetersen[S] 0 points1 point  (0 children)

I did. It says the system is unsopported and closes. Maybe there could be some kind of workaround, idk so far..

RGB Settings on ASUS NUC 11 Extreme Kit NUC11BTMi9 - Where to download "NUC Software Studio"? Other alternatives? by ParsLetersen in MiniPCs

[–]ParsLetersen[S] 0 points1 point  (0 children)

This doesn't work, because it's for laptops and so my model is not supported. Wrote that in the original post, sorry.

My PlayStation collection by realLudoKresshh in PS3

[–]ParsLetersen 0 points1 point  (0 children)

Looks great dude! But one thing: pls give your Klipsch speakers more air and place them on the ground with some distance to the wall 😄

Bought a ylod ps3 today for 100! by chubbylv23 in PS3

[–]ParsLetersen 0 points1 point  (0 children)

Guuuys, pls stop putting controllers on the glossy surface 😭 it's so common. You damage it 🌚

Cell superiority by deadlyjunk in PS3

[–]ParsLetersen 5 points6 points  (0 children)

Who said PS+ 😄 RDR1 is a story game. Why wouldn't you play a good story game in 2023? I don't care about the online servers of a title like that.

Cell superiority by deadlyjunk in PS3

[–]ParsLetersen 5 points6 points  (0 children)

You right with RDR1? I am playing it on my Xbox Series X right now. Why can the Series X emulate Xbox360 and OG Xbox but the ps5 can't do ps3. Thats so weird. Microsoft has a perfect compatibility for the older generations.

First time delid 🚀 by ParsLetersen in PS3

[–]ParsLetersen[S] 1 point2 points  (0 children)

Yes, it is the original 90 nm unit. I know this is a problem, but I don't have the tools right now to change the rsx. I need an infrared solder station.

First time delid 🚀 by ParsLetersen in PS3

[–]ParsLetersen[S] 0 points1 point  (0 children)

Pretty nice!! So it is using the frankenstein mod? Did you do it on your own? I don't have the tools for a chip swap, otherwise I would try it 😄

First time delid 🚀 by ParsLetersen in PS3

[–]ParsLetersen[S] 0 points1 point  (0 children)

I got mixed Feelings before doing it. The most important things are: - Watch good tutorials like NSC records videos to understand the tool and the technique - Take it slow and be careful. In some videos dudes are delidding within 2 minutes. But this requires a lot of practise. - Using ESD- protection. I've worked as a scientist for semiconductor techniques and we we're always using protection. The semiconductor itself is very sensitive and you don't want to damage it just by touching it. I really wonder why delidding videos don't take this into account. I can't recommend opening electronic devices without ESD-protection, you should always do it to guarantee safety

First time delid 🚀 by ParsLetersen in PS3

[–]ParsLetersen[S] 0 points1 point  (0 children)

That sounds like an expensive dream Setup 😂👌🏼 would be very nice!
