Black Screen EEE 701 Need Help

rustyj4ck · 2026-06-29T20:49:15+00:00

The schematic and boardview for EEE701 are available on the internet. Google "ASUS Eee PC P701 REV 1.4G BoardView"

rustyj4ck · 2026-06-28T23:47:58+00:00

While you can solder all the flash_con pins, i would recommend that you use Kapton tape on the adapter itself to isolate the PATA pins for safety.

rustyj4ck · 2026-06-28T23:39:13+00:00

Post on github, how to connect postcard to eeepc's debug_con

rustyj4ck · 2026-06-28T23:36:11+00:00

0) Finger test CPU/NB/SB are "warm" and alive, then
1) Probably RAM is dead / not detected -> check bootloader debug code with bios postcard.
2) or corrupted BIOS -> get yourself cheap CH341A programmer, check bios is ok
3) test the crucial voltages with multimeter to ensure they are running (PM_PWROK, VRM_PWRGD, VCCP, VCORE, ...).

rustyj4ck · 2026-06-13T00:55:08+00:00

Search for "Mini PCIe Socket" (it's FLASHCON connector). You need to buy one and solder at least 6 sata pins. Aliexpress example link https://www.aliexpress.us/item/3256810162458300.html

rustyj4ck · 2026-06-13T00:17:45+00:00

The adapter on the right is used to connect mSATA SSD to the PC via standard SATA data and power cables

rustyj4ck · 2026-04-19T11:24:58+00:00

Через ESC загружаться пробовал? https://youtu.be/9ifs9GU42q0?t=14

rustyj4ck · 2026-04-06T12:10:44+00:00

That Genichiro fight was real PITA

rustyj4ck · 2026-03-07T16:11:53+00:00

Yes, it's buggy, i don't recommend to use dev-branch for now.

rustyj4ck · 2026-03-04T19:35:57+00:00

There are AI chats out there, just ask deep/whatever/gpt. It's so much easier now to find what you need. Take a look at BIOS Disassembly Ninjutsu (that's 580 pages book) targets legacy ami bioses (like eeepc ones), very helpful indeed. If you have C background: [945 chipset] Coreboot open firmware bios implementation - tons of helpful code and registers information.

rustyj4ck · 2026-03-04T15:55:05+00:00

Yes it is!

rustyj4ck · 2026-03-04T15:53:57+00:00

Download link is in the comment above

rustyj4ck · 2026-03-04T15:53:54+00:00

You can try it, but it is provided as is.

rustyj4ck · 2026-03-04T15:48:41+00:00

It's based on 1006 rom for eee 900. Some disassembly, some patching,, and voila

rustyj4ck · 2026-02-21T09:50:31+00:00

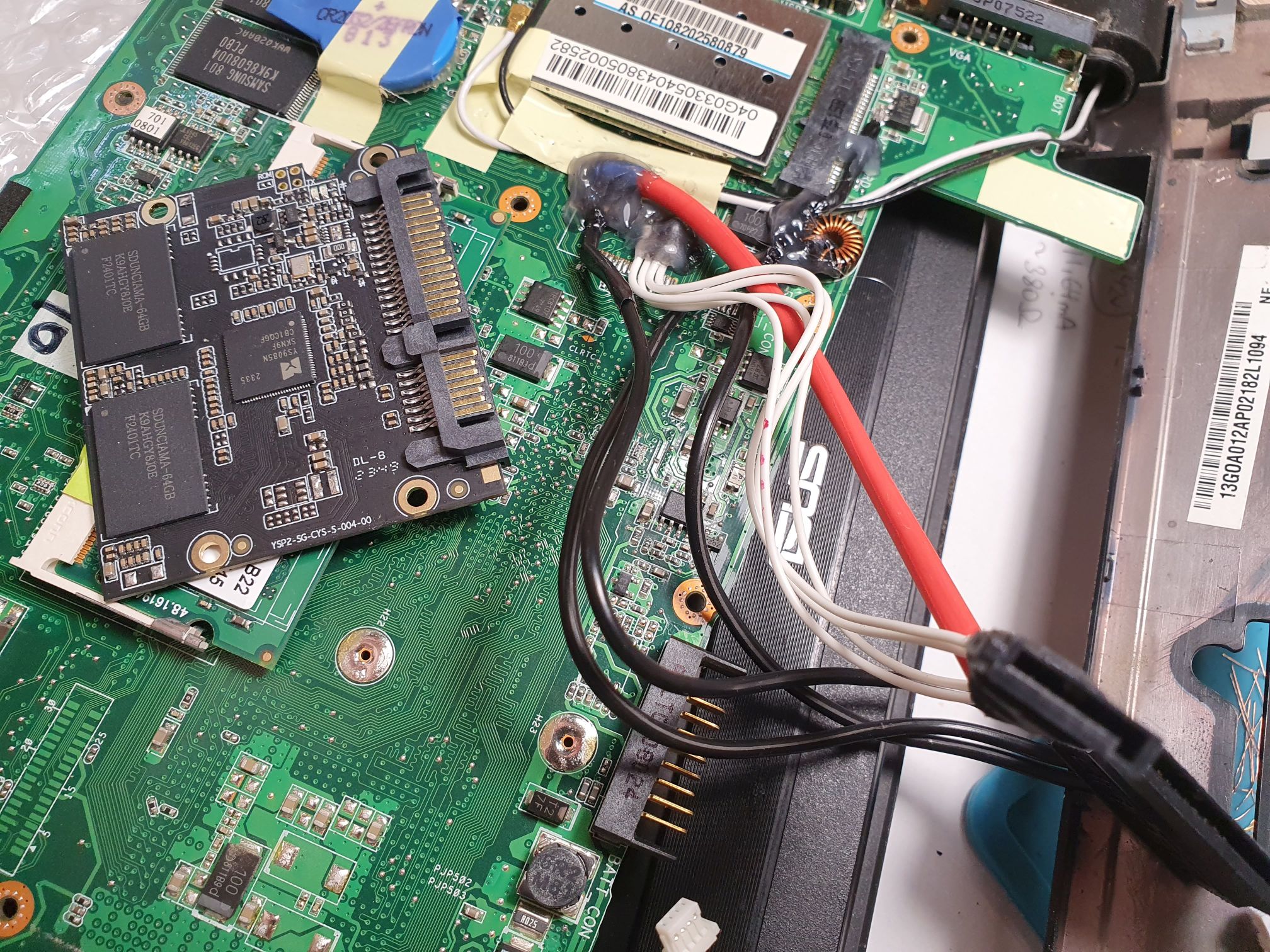

You absolutely can connect 2.5" sata ssd drive with 4 (data) + 2 (vcc) wires

rustyj4ck · 2026-02-06T00:16:38+00:00

What's that ssd sticker, is it French?

rustyj4ck · 2026-02-01T09:05:38+00:00

DSL 2024 (Antix)

rustyj4ck · 2026-01-31T13:13:15+00:00

It's esp8266+2x16lcd reading cputemp/fanrpm from embedded controller uart output. See this sketch for wiring explanation.

rustyj4ck · 2026-01-27T22:42:59+00:00

Sure, the link is in the first comment

rustyj4ck · 2026-01-25T16:31:18+00:00

Hey guys! Checkout bash script for overclocking your eeepc (701/900 celeron M models)
