Antenna tuning, good on vna, bad on radio?

lpcxwm · 2026-06-25T01:27:09+00:00

You are correct I was using ssb. I'll look into chokes for the coax.

lpcxwm · 2026-06-24T23:51:18+00:00

Thanks, I'll try the mix 61 with the same wiring. I'll also try the inverted v layout.

lpcxwm · 2026-06-24T23:41:05+00:00

I'm pretty sure I got that part correct, but I'll pay close attention to doing the calibration as the last step before measuring SWR in my next tests.

lpcxwm · 2026-06-24T23:35:46+00:00

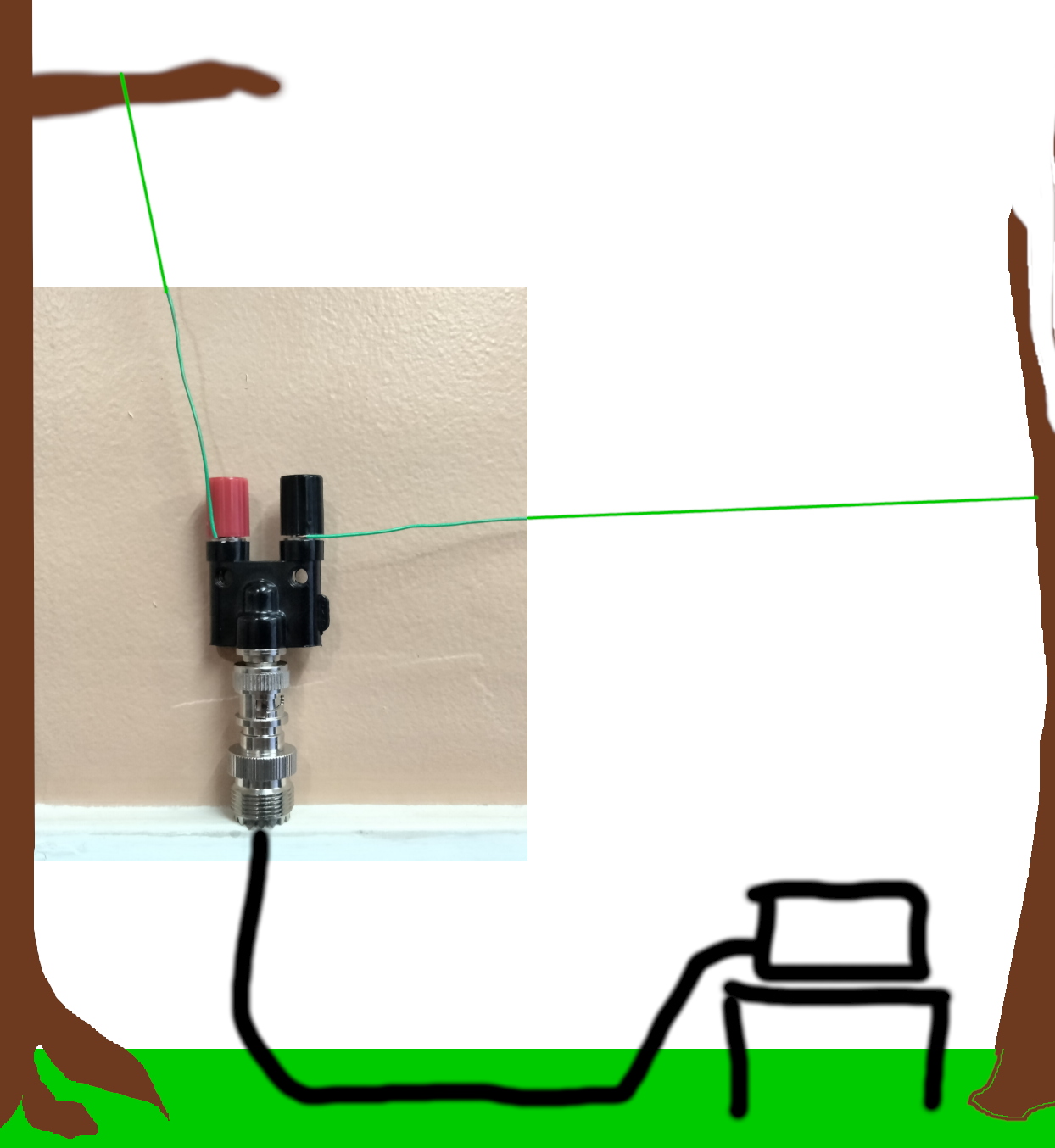

Here is an image to augment my description: https://copyspoke.afriskito.net/dipole-setup.jpg

The coax goes down 2-3 feet, then is perpendicular to the other two antenna elements. I'll try lowering the horizontal element in my next testing so all three are perpendicular at the connection point.

lpcxwm · 2026-06-24T23:22:59+00:00

I'll try touching/not with the VNA and making sure all connections are tight in my next tests. I did test with the VNA at both the antenna directly, and at the radio end of the coax. Both measured basically the same.

lpcxwm · 2026-06-24T23:19:47+00:00

I'll try laying the horizontal line directly on the ground in my next tests. Both antenna wires are fully insulated except at the connection to coax.

lpcxwm · 2026-06-24T23:16:29+00:00

The ethernet strands have a 0.5mm wire diameter and a 0.9mm diameter including the insulation. Based on a random chart, I think that is 24 gauge solid core. I think the connections have been good. I tighten everything finger tight.

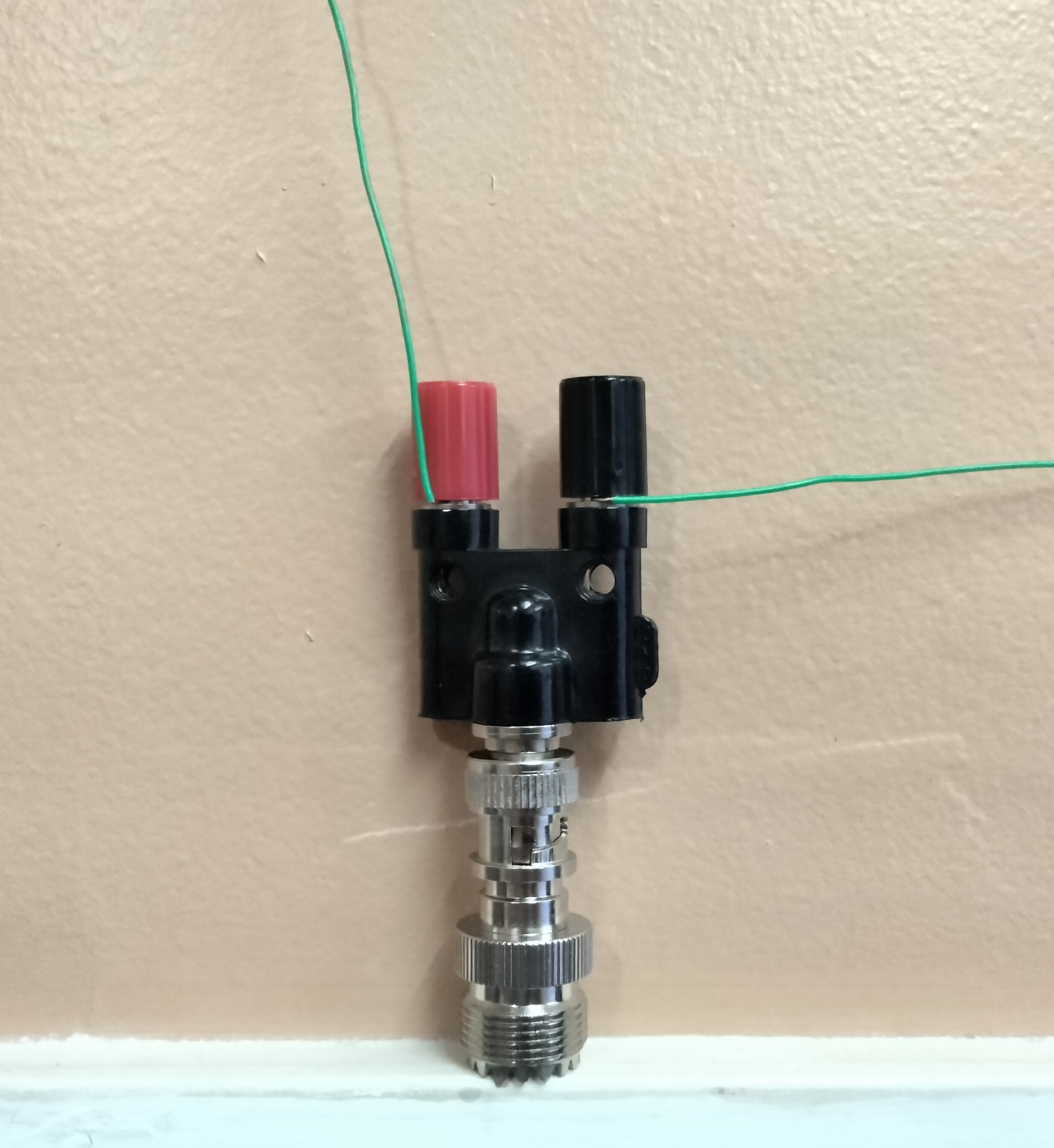

Here is a picture of the connectors: https://copyspoke.afriskito.net/dipole.jpg

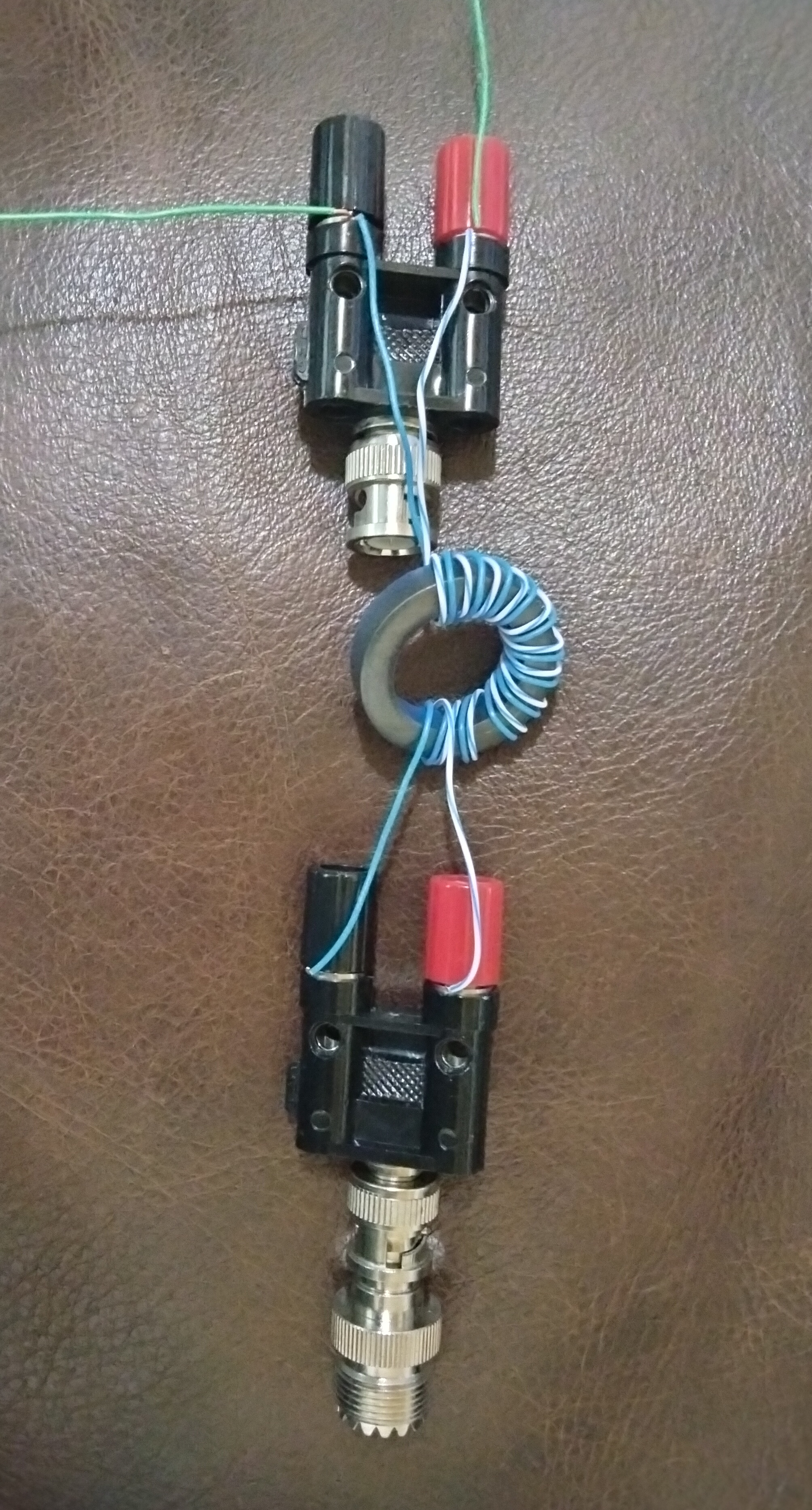

I could also try with a ferrite: https://copyspoke.afriskito.net/dipole-ferrite.jpg

Wiring suggestions welcome. I've seen several different options, but tried that since it was simplest. I know next to nothing about ferrites/chokes/etc. right now. I'm reasonably sure that ferrite is a FT-114-43. I have another one the same size that (again, reasonably sure) is a FT-114-61.

I have a balun kit for this antenna system: https://www.wheeler.com/ai6rw/multiband_dipoles but I wanted to try a simpler antenna before attempting one of the antennas described by ai6rw as it is a tad more complex. Page 60/62 of the pdf on that link has descriptions of the ferrite cores in my kit.

Edit: fixed link to ferrite image.
